Specifications
-
Battery Included : YesHign-concerned Chemical : None
-
Certification : CE,FCC,RoHS,weeeOrigin : Mainland China
-
Power Type : RechargeableSize : 96*34*67mmModel Number : Golf Range Finder
-
Measurement Accuracy : ±1mREVASRI Model : Golf Rangefinder with Slope
-
Power Source : RechargeableProduct name : Golf Laser Rangefinder
-
Measuring Range : 5-600m/5-1000mMeasurement errors : ±1Yard/Meter
-
Power supply : USB-C RechargeableSlope switch : Yes
-

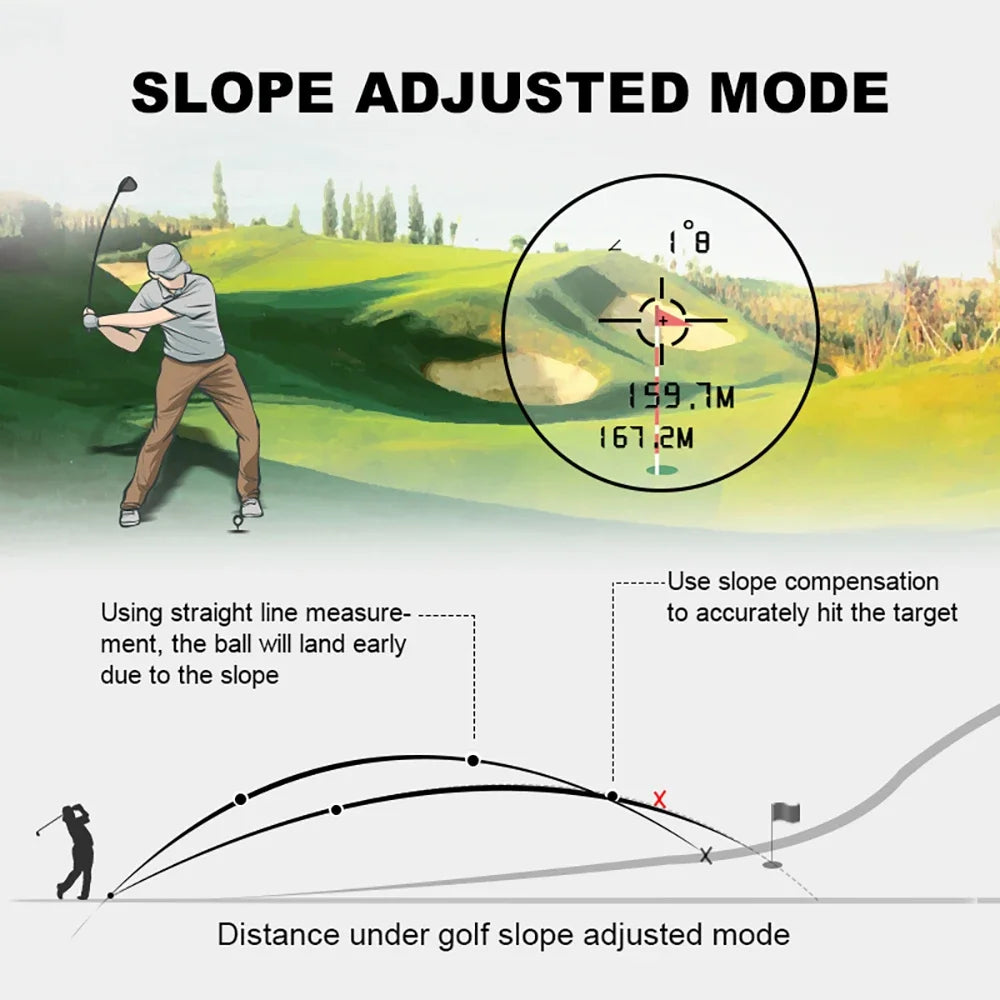

Slope compensation : YesSwitch Unit : M/Yard Long press M and the measurement key to switch
-
Vibration : After the flag is lockedApplications : for Golf Tournament Legal
Description
Precautions:
1.This is a long distance rangefinder. The measurement distance is at least 5 meters.
2. Glass reflects the laser light and affects the measurement results.Do not measure through glass during measurement.
3.Rainy, foggy, dusty weather, and severe air pollution can affect laser transmission and measurement results.
4. Low-light conditions at night necessitate additional lighting to view the readings, since the eyepiece display lacks illumination.
Model Number:NKG-Golf
Unit：M/Yard Long press M and the measurement key to switch
-
Ranging Method:Semiconductor laser ranging
-
Ranging Distance:5-600M/5-1000M
-
Ranging Accuracy:±1M
-
Ranging Display Mode:In-view LCD display
-
Exit Pupil Diameter:3.1mm
-
Exit Pupil Distance:12.1mm
-
Working Temperature:-20~50℃
-
Operating Humidity:≤80%
-
Laser Safty:905nm Class 1 laser, laser output<5mw
-
Power Supply:built-in Li-ion battery (3.7V) Supports USB-C charging
-
Focusing Mode:Manual Focusing(Rotating mirror）
-
Eyepiece Lens Quality:Multilayer Coated
-
Magnification:6X
-
Product Size:96*34*67mm

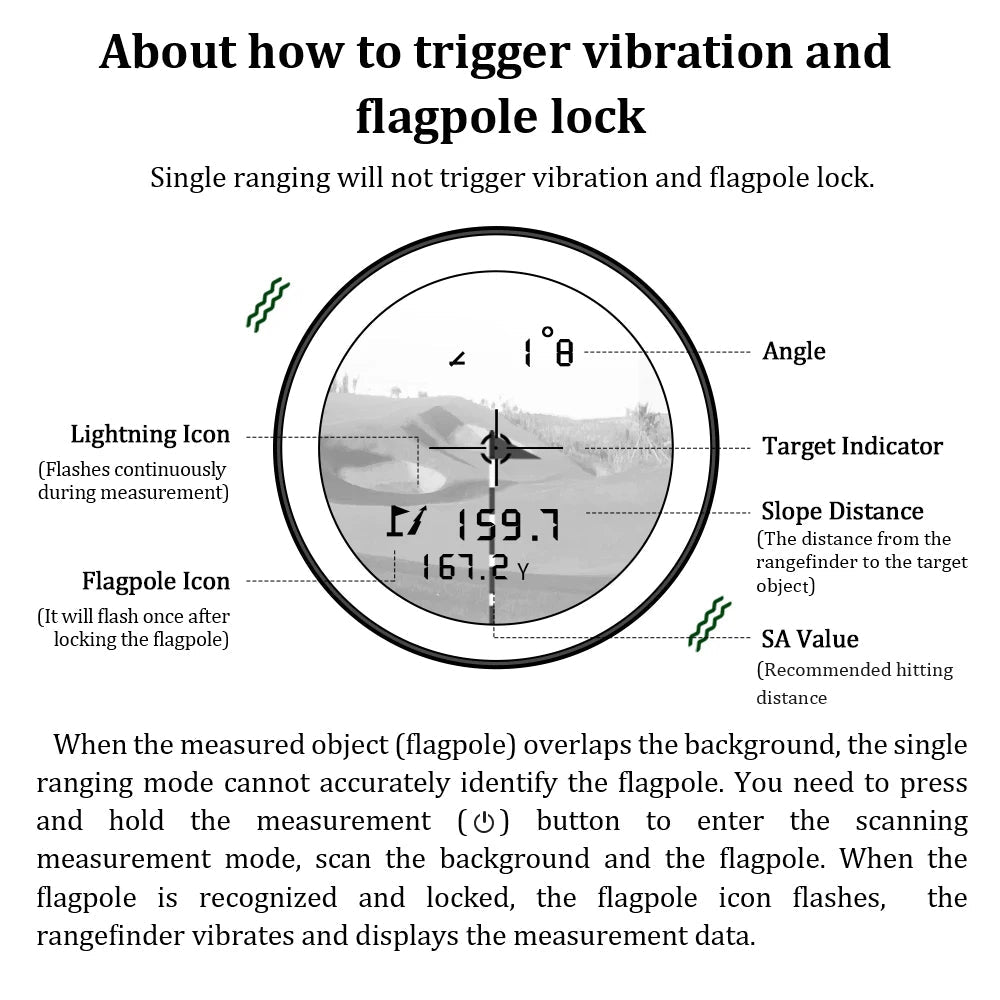

How does the rangefinder cause the lock fag to vibrate?
In Golf Mode.
1. measure the background of the slope behind the flag.
2. Press and hold the Measure button (to enter Scan Mode) and slowly move from the background toward the flag. The rangefinder will recognize the flag and the flag logo will flash and vibrate.
3. The distance to the flag and the slope compensation distance are displayed.
You can try again as mentioned above; if you have any other questions, please do not hesitate to contact me and we will reply to you as soon as possible.
